API

Documentation

The API documentation is available at: http://app.konfuzio.com/swagger. To access the documentation please register beforehand.

How to make an API Call

The API supports Password Authentication and Token Authentication. An API Token can be obtained here: https://app.konfuzio.com/v2/swagger/#/token-auth/token_auth_create

“ENDPOINT” needs to be replaced with the respective API endpoint.Username, password and token are randomized examples.

Using CURL

Password authentication:

curl -u [email protected]:9XQw92GZsJB2Ti  -X GET "https://app.konfuzio.com/api/ENDPOINT/"

Token authentication:

curl -H "Authorization: Token 9944b09199c62bcf9418ad846dd0e4bbdfc6ee4b" -X GET "https://app.konfuzio.com/api/ENDPOINT/"

Using Python

Password authentication:

import requests
from requests.auth import HTTPBasicAuth

auth = HTTPBasicAuth('[email protected]', '9XQw92GZsJB2Ti')
r = requests.get(url="https://app.konfuzio.com/api/ENDPOINT/", auth=auth)

Token authentication:

import requests

headers = {'Authorization': 'Token 9944b09199c62bcf9418ad846dd0e4bbdfc6ee4b'}
r = requests.get(url="https://app.konfuzio.com/api/ENDPOINT/", headers=headers)

Tutorial Videos

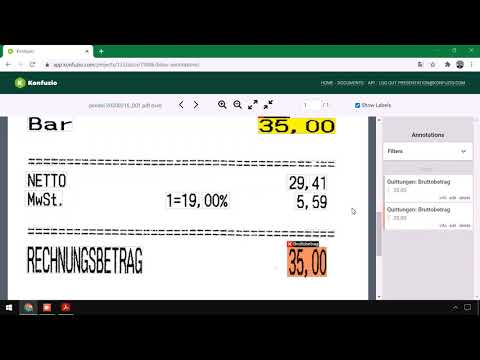

How to use the Konfuzio API

IMAGE ALT TEXT HERE

How To Konfuzio - In 10 Minuten zur eigenen Dokumenten API (German Version)

IMAGE ALT TEXT HERE

Document Categorization

The API provides an endpoint that allows to upload a document and also get directly its metadata.

import os
import requests
from requests.auth import HTTPBasicAuth

auth = HTTPBasicAuth('USERNAME', 'PASSWORD')

categories = {"xx": "Category A", "yy": "Category B"}

# filepath - path to your local file
with open(filepath, "rb") as f:
    file_data = f.read()

files_data = {
    "data_file": (os.path.basename(filepath), file_data, "multipart/form-data"),
}

# sync = True to have directly the metadata of the file
# PROJECT_ID - id of your project in app konfuzio
data = {'project': PROJECT_ID, 'sync': True}

r = requests.post(url="https://app.konfuzio.com/api/v2/docs/", auth=auth, files=files_data, data=data)

code_category = r.json()["category_template"]
print(categories[str(code_category)])

Document Segmentation

The API provides an endpoint that allows for detection of different elements in a document such as: text, title, table, list, and figure. For each element it is possible to get a classification and bounding box.

The model used on the background for this endpoint is a Mask-RCNN [1] trained on the PubLayNet dataset [2].

This model is available in the Detectron2 [3] platform, which is a platform from Facebook AI Research that implements state-of-the-art object detection algorithms. The weights of the model trained with PubLayNet can also be found online.

To visualize the results of this endpoint (using a document uploaded in the Konfuzio app):

import requests
from requests.auth import HTTPBasicAuth

auth = HTTPBasicAuth('USERNAME', 'PASSWORD')
url = f'https://app.konfuzio.com/api/projects/{PROJECT_ID}/docs/{DOC_ID}/segmentation/'
r = requests.get(url=url, auth=auth)
result = r.json()

image_path = document.image_paths[i]
image = Image.open(image_path).convert('RGB')

color_code  = {'text': (255, 0, 0),
               'title': (0, 255, 0),
               'list': (0, 0, 255),
               'table': (255, 255, 0),
               'figure': (0, 255, 255)}

for bbox in result[i]:
    label = bbox['label']
    pp1 = (int(bbox["x0"]), int(bbox["y0"]))
    pp2 = (int(bbox["x1"]), int(bbox["y1"]))
    image = cv2.rectangle(np.array(image), pp1, pp2, color_code[label], 1)

plt.imshow(image)
plt.show()
segmentation_endpoint

[1] Kaming H. et al., “Mask R-CNN”, 2018
[2] Zhong, X. et al., “PubLayNet: largest dataset ever for document layout analysis”, 2019
[3] Yuxin, W. et al., Detectron2, GitHub repository, https://github.com/facebookresearch/detectron2, 2019
